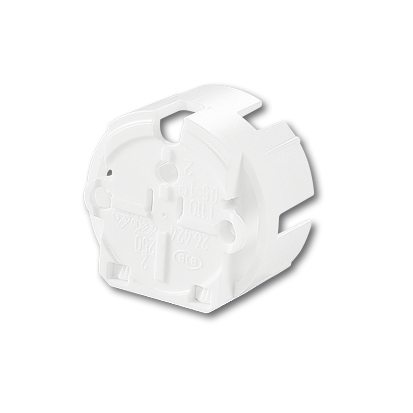

G13 Fluorescent End Mount and Push-In Lampholders
品番:
26.424.1001-0
EAN:
4049853
-
-
18 AWG0,5 - 1,0 mm²
-
製品情報 "G13 Fluorescent End Mount and Push-In Lampholders"
- The electrical connection is made by pushing the lampholder onto the lamp pins. The lamp must be supported by a supplementary component.
- Additional fixing holes for starter holders 26.515.5317 or 26.515.5301 at the rear.
- UL Recognized Component: File E-92235
- For T8 lamps only
- Additional fixing holes for starter holders 26.515.5317 or 26.515.5301 at the rear.
- UL Recognized Component: File E-92235
- For T8 lamps only
| Ausführung: | G13 End Mount and Push-In Lampholders |
|---|---|
| Color: | white |
| Fluorescent lamps: | G13 |
| Material: | Housing: PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | G13 End Mount and Push-In Lampholders |
| Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
| UL?: | yes |
| Weight: | 4 g |
| approbation: | cULus |
| mounting method 1: | Without mount |
| old article number: | 26.424.1001.50 |
利用可能なダウンロード
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 26.424.1001-0 | ENEC_Zeichen-ENEC_Approval1640164 | ||
| 26.424.1001-0 | Genehmigung_liegt_vor-Approval_at_hand3677956 | ||
| 26.424.1001-0 | Genehmigung_liegt_vor-Approval_at_hand3497826 | ||
| 26.424.1001-0 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)727851 | ||
| 26.424.1001-0 | PSE-Mark_(Japan)-PSE-Mark2008303 |
-
-
18 AWG0,5 - 1,0 mm²
-
