G13 Fluorescent Push-in Lampholders
品番:
26.301.1001-0
EAN:
-
-
-
-
0,5 - 1,0
-
-
-
-
0,5 - 1,0 mm²
-
製品情報 "G13 Fluorescent Push-in Lampholders"
- A pair of lampholders provides a total lamp length tolerance compensation of 3 mm
The pre-wired lampholder can then be enclosed within the luminaire for minimum packaging volume and maximum shipping protection.
The pre-wired lampholder can then be enclosed within the luminaire for minimum packaging volume and maximum shipping protection.
| Ausführung: | G13 Push-in Lampholders |
|---|---|
| Color: | white |
| Fluorescent lamps: | G13 |

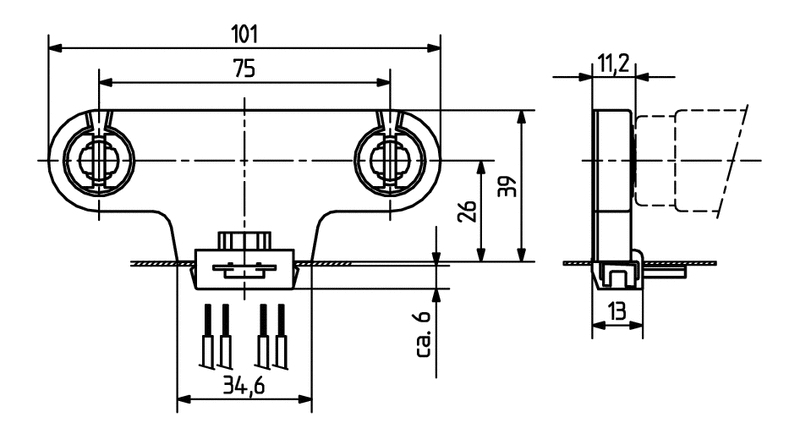

| Lamp axis height: | 26 |
| Luminaire wall thickness: | 0.5 - 1.0 |
| Material: | Housing: PCRotor: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 200 |
| Producttype: | G13 Push-In Lampholders |
| Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
| T-marking: | 130 |
| Weight: | 18 g |
| Wiring: | through the body |

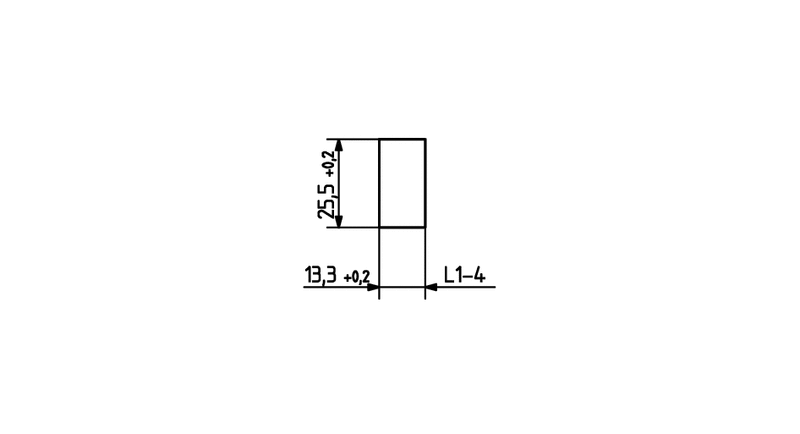

| mounting method 1: | Snap-in foot 13.3 x 25.5 mm |
| old article number: | 26.301.1001.50 |
利用可能なダウンロード
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 26.301.1001-0 | PSE-Mark_(Japan)-PSE-Mark1203964 | ||
| 26.301.1001-0 | Genehmigung_liegt_vor-Approval_at_hand3463569 | ||
| 26.301.1001-0 | Genehmigung_liegt_vor-Approval_at_hand749902 | ||
| 26.301.1001-0 | Genehmigung_liegt_vor-Approval_at_hand3677956 | ||
| 26.301.1001-0 | ENEC_Zeichen-ENEC_Approval5164211 | ||
| 26.301.1001-0 | Genehmigung_liegt_vor-Approval_at_hand1263916 |
-
-
-
0,5 - 1,0
-
-
-
-
0,5 - 1,0 mm²
-
