OptiSpot Lens Ø 35 mm Spot

製品情報 "OptiSpot Lens Ø 35 mm Spot"
OptiSpot Lens is optimized for use with connectors 47.360 with Ø 35 mm.

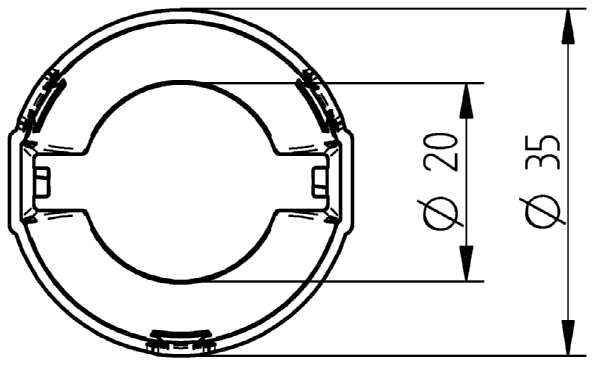

Diameter: 35 mm
Efficiency: 83%
Height: 17,35 mm
Light Distribution: Spot

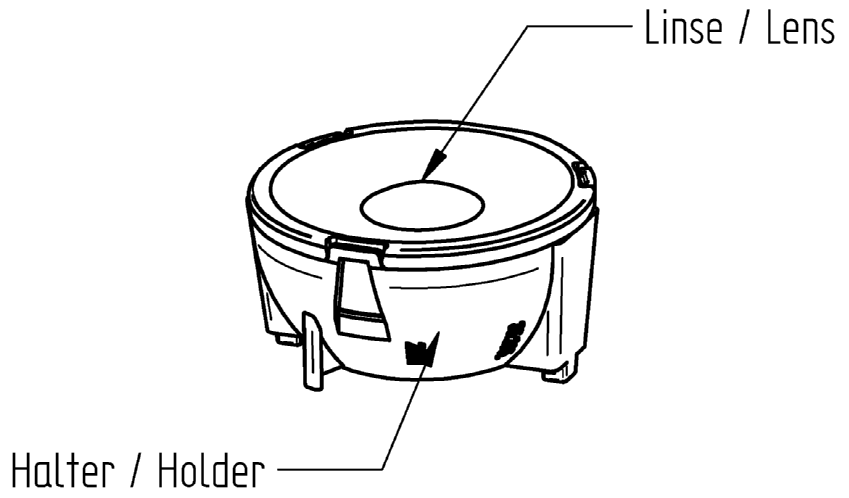

Material: Holder: PC / Lens: PMMA
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature: 80°C
Packaging quantity: 576
Producttype: OptiSpot Lens Ø 35 mm
Series: Lenses Ø 35 mm for Spotlight Connectors Ø 35 mm
Suitable for: Recommended COB Type: Luminus CHM-6
Weight: 9,6 g
angle of radiation: 20°
mounting method 1: Bayonet fixing by Twist & Lock action
old article number: 35.235.2001.80
