SMD Terminal Block Pico - 1 pole
-
-
0.20-0.50 mm²AWG 24-20
-
0,20-0,75 mm²AWG 24 -18
-
7.5 - 9.5 mm
-
-
0.20 - 0.75mm²AWG 24 - 18
-
Ø < 1.55 mm: 6.5 - 7.5 mm
Funnel-shaped wire insertion channel for easy wire insertion
Direct insertion of solid and stranded, tinned wire ends and finely stranded conductors by using the contact opening function

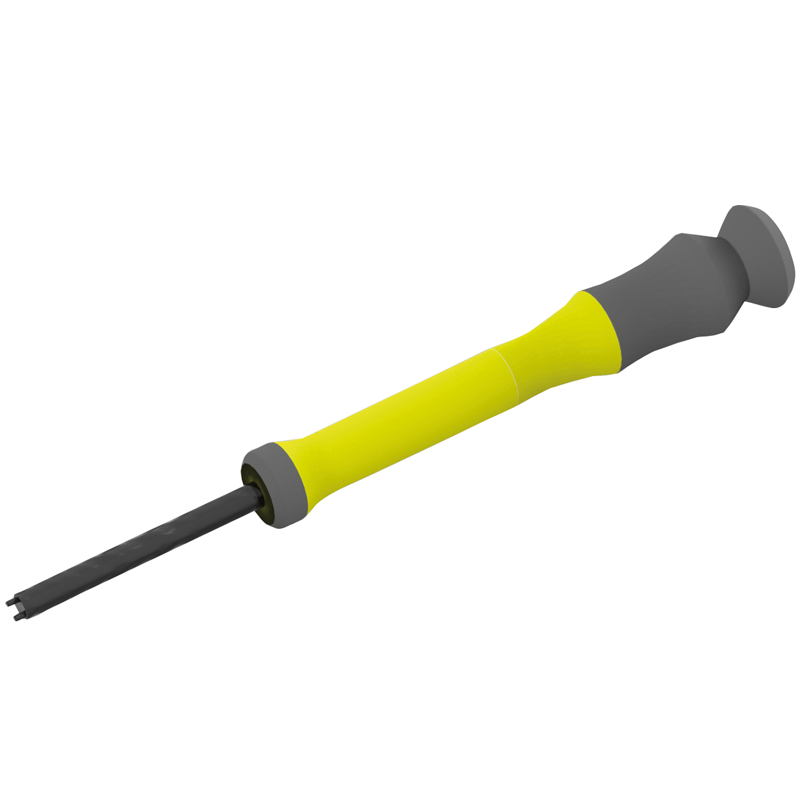

Contact opening function - also for release of already inserted wires
Mounting and wiring position: PCB top side

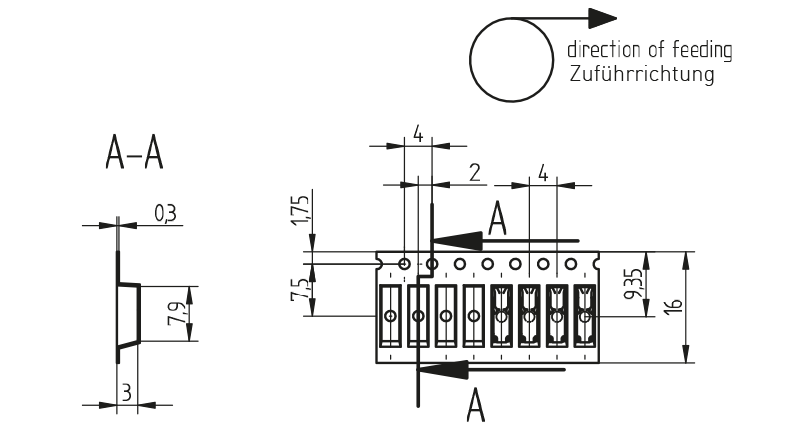

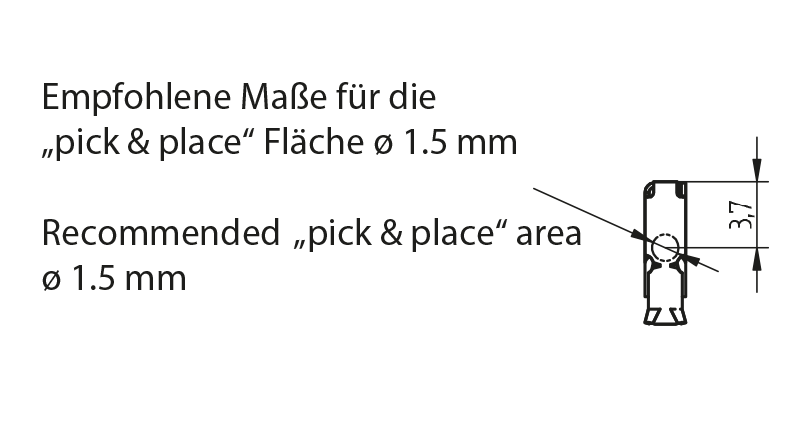

Machine-compatible "tape-and-reel" packaging
Fixing: Lead-free reflow soldering according to DIN EN 610760-1, section 6
Note: Terminal without insulation housing! Protection against contact when using voltage> extra-low voltage (SELV, PELV) must be ensured in the application.
For further technical data, please refer to the technical data sheet under menu item downloads.
Instructions for soldering process
Suitable for leadfree-reflow-profiles according to DIN EN 61760-1 respective DIN EN 60068-2-58 up to peak-temperature of max. 260°C. Due to different application-specific parameters (component arrangement and alignment, soldering system, solder paste), it is recommended to use test runs to determine a suitable profile under production conditions.
Depending on the SMD soldering process and associated parameters a minor discoloration might occur. However, this will not influence the functionality.
| Conductor cross-section: | Eindrähtige Leiter / Solid wires: 0,20 - 0,75 mm² AWG 24-18; Feindrähtige, verzinnte Leiter / Stranded, tinned wires: 0.20 - 0.5 mm², AWG 24-20; Feindrähtige Leiter / Stranded wires: 0.20 - 0.75 mm², AWG 24-18 |
|---|---|
| Connector: | push wire contact |

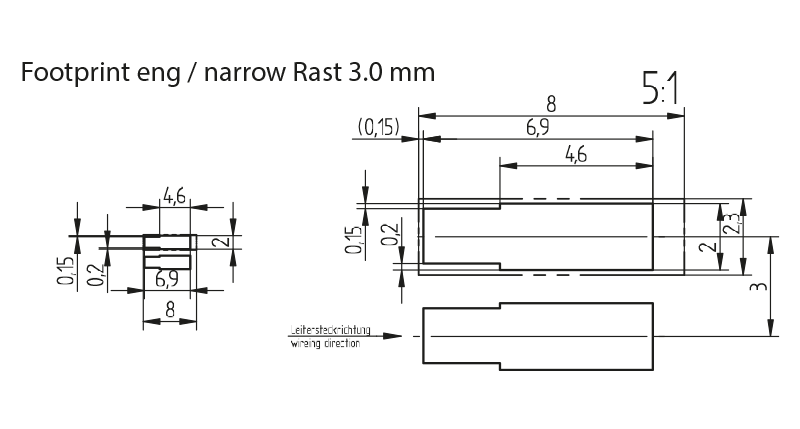

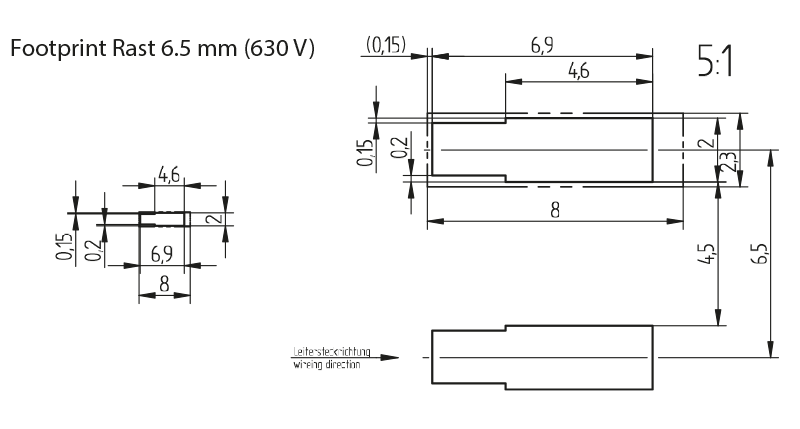

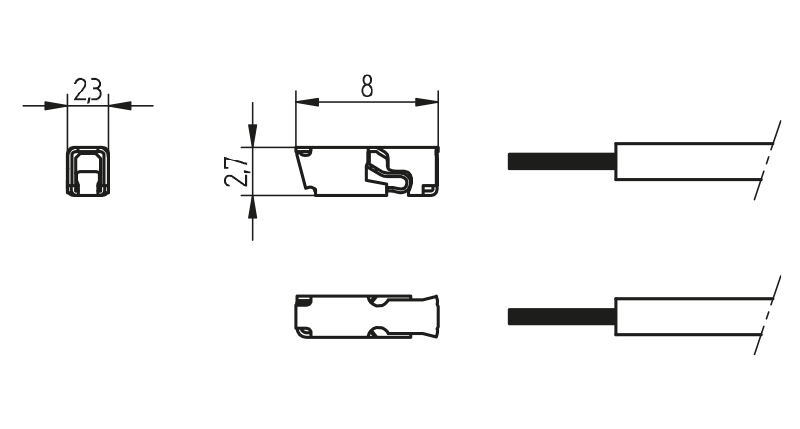

| Height: | 2,7 mm / 0.16 inch |
| Height (build in): | 2.7 mm |
| Length: | 8 mm / 0.52 inch |
| Material: | Material: CrNi / CuSn; Clamping spring material: CrNi; Contact material: CuSN; Contact surface: hot-dipped tinned |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 1 |
| Operating temperature: | max. 260 °C |
| Packaging quantity: | 108000 |
| Producttype: | Pico SMD Terminal Blocks |
| Series: | Pico SMD Terminal Blocks |
| Temperature rating: | Ambient temperature from -40 °C to + 105 °C |
| UL?: | yes |
| Weight: | 0,15 g |
| Width: | 2.3 mm / 0.15 inch |
| Wiring: | PCB top side |
| mounting method 1: | Solder fixing |
| old article number: | 46.110.1001.48 |
利用可能なダウンロード
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 46.110.1001-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)4268179 | ||
| 46.110.1001-0 | ENEC_Zeichen-ENEC_Approval6540990 |
-
-
0.20-0.50 mm²AWG 24-20
-
0,20-0,75 mm²AWG 24 -18
-
7.5 - 9.5 mm
-
-
0.20 - 0.75mm²AWG 24 - 18
-
Ø < 1.55 mm: 6.5 - 7.5 mm
