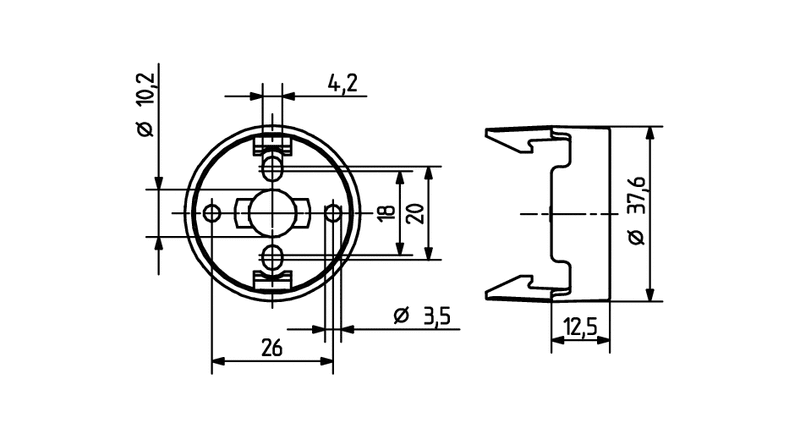

Snap on insulating cap: 37,6 mm dia.
品番:
22.917.E013-0
EAN:
4049853
製品情報 "Snap on insulating cap: 37,6 mm dia."
Center hole 10mm dia.
Anti-rotation slots on outside
Anti-rotation slots on outside
| Accessories: | E27 |
|---|---|
| Ausführung: | Accessories: E27, E26 |
| Color: | white |
| Material: | Housing: PA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Accessories for E27, E26 Lampholders |
| Series: | Incandescent Lampholders |
| Weight: | 6 g |
| mounting method 1: | Screw mount |
| old article number: | 22.917.-013.50 |
利用可能なダウンロード
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|
